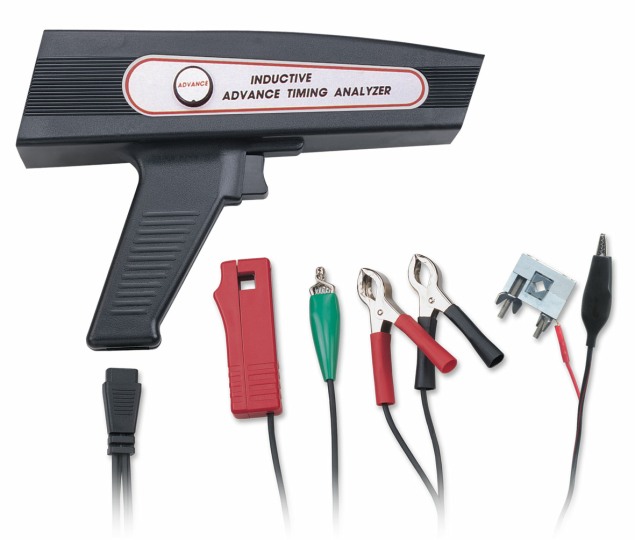

Digital Advance Diesel Timing Light with Tach / Dwell / Volt Tester DA-3100

•  High impact ABS housing.

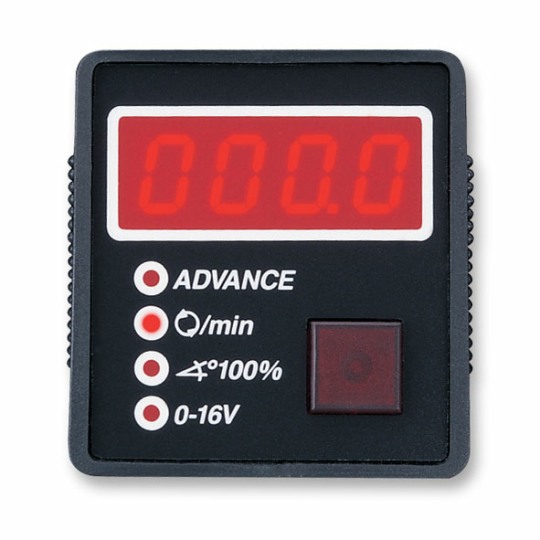

•  Large LED makes readings easy.

•  Works on all 12 volt gasoline engines

•  Professional quality tool works with conventional and distributorless (DIS) ignition systems.

•  Detachable heavy duty inductive pick-up clamps and leads for easy operation and replacement.

•  Bright xenon flash tube provides concentrated light for easy visibility of timing mark.

Functions:

   Advance: 0-60 Degree BTDC

   Tach: 200-10000 RPM

   Dwell: 0-99.9%

   Volt: 0-16V

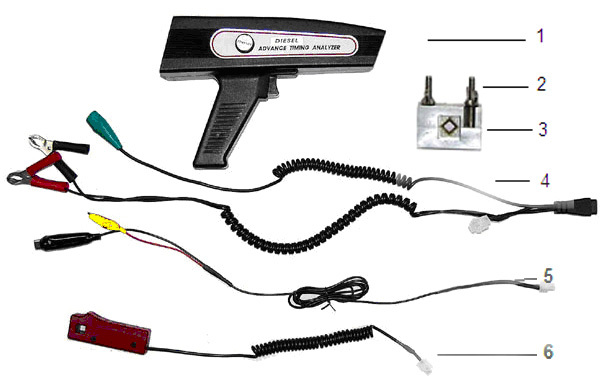

1. Timing Light
2. Adjustable Nuts: to adjust the tightness of the Piezo Clamp onto the injector pipe
3. Piezo Clamp: The Piezo Clamp equipped with a sensing element enables to detect the fuel pressure pulse in the injector fuel pipe while fuel is injected into the cylinder and the Piezo Clamp is clamped on the #1 Injector fuel pipe.
4. Main Cable :.

           a. Battery Clips (red & black): to supply the Timing Light powered from the vehicle battery

           b. Test Clip (green): for RPM, Dwell, Voltage tests

           c. Sensor Connector (white): to connect with Diesel sensor lead or Inductive pickup lead

5. Diesel oil sensor Lead with wire: to produce a signal to trigger the timing light
6. Inductive Pick-up Lead: to clamp onto #1 spark plug of ignition engine system
